DBR series Powered Loudspeakers
POWER IN VERSATILITY
![](/no/files/58E8451FC0654F6F816F05CE088A1FAA_12083_320x214_594b9443ac17583e7f7b007981d6c3c3.jpg)

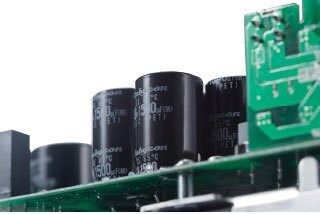

The DBR's lightweight, high performance Class-D amplifier is capable of producing up to 1000W* of power, achieving an SPL of 132dB, delivered with remarkable clarity and dynamic characteristics.*DBR10 has an output level of 700W.
Custom Designed Transducer
![](/no/files/E7F112939B6D4F0D810E994E9EFEB869_12083_320x277_4fd2066e497a451eb1917f8a31bb1c9a.jpg)

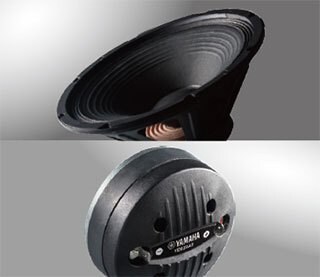

The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4" precision compression driver* produces accurate mid-range and high frequencies.*DBR10 features a 1" compression driver.
A Rugged, Highly Portable Cabinet
![](/no/files/54388B8F070C4E3BB8E787DB0398307D_12083_320x239_261c3a91f01e4b7eafd12a64bfbb4594.jpg)
DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while a newly designed ergonomic handles provide effortless transportation and system setup.
Easy-to-use Onboard 2-Channel Mixer
![](/no/files/A76B3F4C9E364076B95656BC3F2F4AA9_12083_240x273_500de605f5b94891cfdb4656fa7f8cfc.jpg)
DBR Series speakers have two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.
Smart Enclosure Design for Floor Monitoring
![](/no/files/D13850B9522C489490242210B0E56FC1_12083_320x124_29138d65132e179ae323e998635a0e19.jpg)

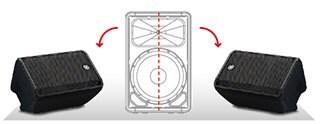

DBR Series speakers feature an optimized 50°wedge angle for floor monitoring. In addition the DBR12 and DBR15's symmetrical shape allows for effortless configuration of a mirror-mode floor monitoring system in either symmetrical or stereo sound field setups.
Rigging Points for Installation Applications
![](/no/files/E77C58E8990A40BBBA77745605F9FE3C_12083_320x245_6e14fcfe9bf40962170a3a5259c3056f.jpg)

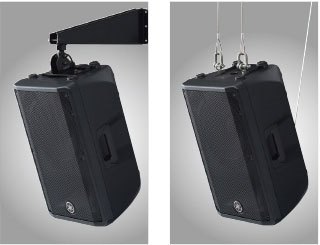

DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts.*Speaker brackets and eye-bolts are not included.
