STAGEPAS 100

Banner of ALL THE WORLD'S YOUR STAGE—STAGEPAS 20 Years

Produktutvalg

STAGEPAS 100BTR mkIIBærbart PA-system

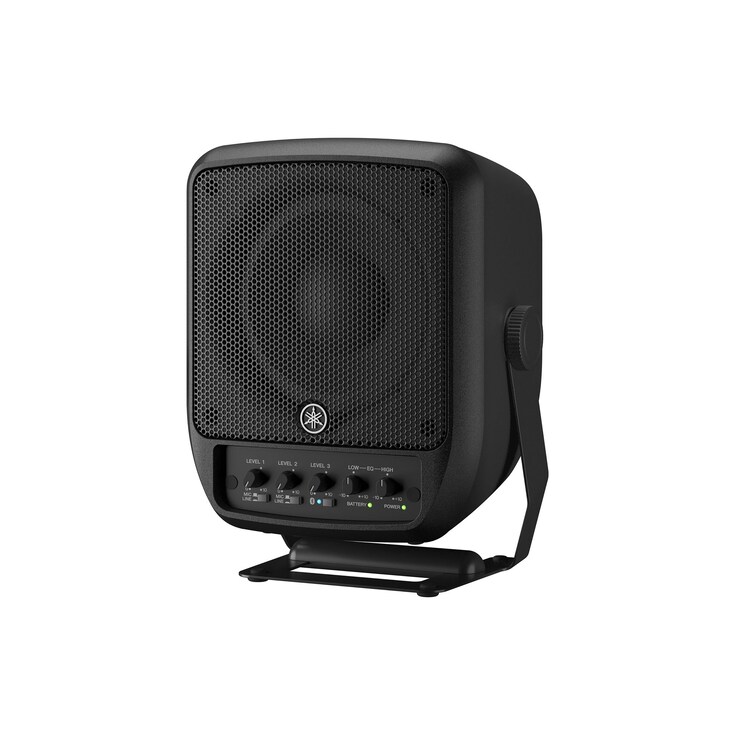

Yamaha bærbart PA-system STAGEPAS 100BTR mkII

Bærbart PA-system utstyrt med en 100 W forsterker, koaksial kompresjonsdriver med 1,4« stemmespole HF og 6,5» kjegle LF, en 3-kanals mikser, internt litiumionbatteri, lyd I/O-funksjonalitet via USB eller Bluetooth® og støtte for USB Power Delivery (USB PD).

100 W klasse D-forsterker
1,4« HF + 6,5» LF høykvalitets koaksial kompresjonsdriver med FIR-filter for delefilteret
3-kanals mikser (2 monofoniske mikrofon-/linjeinnganger + 1 linjeinngang)
Utstyrt med en 2-bånds master-EQ
Kompatibel med Hi-Z-inngang (kun kanal 2)
Utstyrt med mix-out
Bærehåndtaket fungerer også som et justerbart stativ
Kompatibel med lydakkompagnement via Bluetooth
Valgfri bæreveske (BAG-STP100) tilgjengelig for praktisk transport
Internt litiumionbatteri
Utstyrt med lyd-I/O-funksjonalitet via USB- eller Bluetooth®-tilkobling
Støtter USB Power Delivery (USB PD)

STAGEPAS 100BTRBærbart PA-system

Yamaha Portable PA System STAGEPAS 100BTR

Portable PA system equipped with a 100 W power amp, coaxial compression driver with 1.4” voice coil HF and 6.5” cone LF, a 3-channel mixer, and internal lithium-ion battery

100 W Class-D amplifier
1.4” HF + 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover
3-channel mixer (2 monaural mic/line + 1 line)
Equipped with a 2-band master EQ
Compatible with Hi-Z input (Channel 2 only)
Equipped with mix-out
Carrying handle doubles as an adjustable stand
Compatible with audio accompaniment over Bluetooth
Optional carrying bag (BAG-STP100) available for convenient transport
Internal lithium-ion battery

STAGEPAS 100Bærbart PA-system

Portable PA system equipped with a 100 W power amp, coaxial compression driver with 1.4” voice coil HF and 6.5” cone LF, and a 3-channel mixer.

100 W Class-D amplifier
1.4” HF + 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover
3-channel mixer (2 monaural mic/line + 1 line)
Equipped with a 2-band master EQ
Compatible with Hi-Z input (Channel 2 only)
Equipped with mix-out
Carrying handle doubles as an adjustable stand
Compatible with audio accompaniment over Bluetooth
Optional carrying bag (BAG-STP100) available for convenient transport

Alternativer

BAG-STP100Carrying Bag

Carrying bag for STAGEPAS 100.

Weight: 1.1 kg (2.4 lbs)
Dimensions (W x H x D): 370 x 240 x 240 mm (14.6" x 9.5" x 9.5")

Funksjoner

UTVID DITT SORTIMENT, UTVID DIN REKKEVIDDE

Det bærbare PA-systemet STAGEPAS 100 har en perfekt balanse mellom høy lydkvalitet og optimal bærbarhet, slik at du kan gjøre praktisk talt hvilket som helst sted om til din egen intime live-scene. STAGEPAS 100 kommer i to versjoner, en med batteri og en uten. Den lette, men holdbare designen, den enkle betjeningen og den fantastiske lyden gjør at du kan nå publikum med full uttrykksevne i opptredenen din.

Den batteridrevne STAGEPAS 100BTR mkII tilbyr også lyd-I/O-funksjonalitet via USB- eller Bluetooth®-tilkobling, slik at du kan vise frem dine opptredener med krystallklar lyd til publikum på andre steder eller kommunisere med kolleger på fjerne steder.

Compact design. Big sound.

Far more than just a speaker that amplifies your mic or instrument inputs, the diminutive STAGEPAS 100 delivers impressive sonic performance by leveraging some of the same technologies used in our high-end professional products. A powerful, high-quality coaxial compression driver combined with Yamaha’s FIR-X filters for the HF and LF crossover deliver sound pressure, precise phase response, and a natural dispersion that will ensure every nuance of your performance is conveyed loud and clear to your audience.

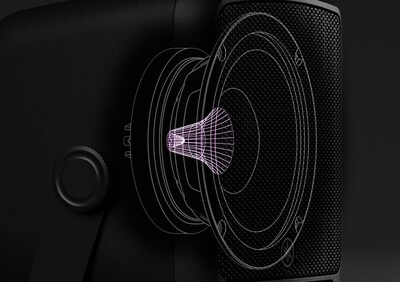

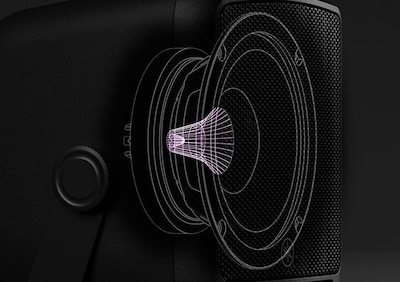

Coaxial compression drivers utilize a common motor structure sharing a single magnet, reducing weight and bringing LF and HF closer together to provide a more ideal point sound source. Since sharing a magnet reduces magnetic flux, lowering the sound pressure, these drivers use voice coils made of a light aluminum material called "CCAW" wound in a square shape referred to as "Edgewound" to increase magnetic flux and ensure sufficient sound pressure, and also feature a device called a "demodulation ring" that suppresses magnetic flux disturbance to maintain a high level of sound quality. Additionally, they are equipped with an air venting structure in the basket to reduce LF wavering at high volumes, a polyimide diaphragm to balance HF durability with smooth high-frequency characteristics, and a short aluminum horn for better directional control, durability, and heat dissipation. These compact units house advanced, state-of-the-art technologies.

Start the show in seconds

With an unrivaled ease of operation and a setup requiring mere seconds, the STAGEPAS 100 will have you sounding great and performing in an instant. Just turn the power on, connect a micro-phone and your instrument, turn the volume up, and you're ready to go. The master EQ is right on the front panel making it easy to dial in your sound or adjust settings on the fly.

“A PA in the palm of your hand”

With all the essentials for a compact PA packed into a durable cabinet weighing just 5 kg, the STAGEPAS 100 takes portability to a whole new level. Having a personal live stage you can easily carry in one hand makes it possible to set up and play literally anywhere, anytime.

Yamaha STAGEPAS 100: PA in the palm of your hand

Støtte for hybridapplikasjoner

STAGEPAS 100BTR mkII er utstyrt med batteri og tilbyr lyd-I/O-funksjonalitet via USB- eller Bluetooth-tilkobling, slik at talesignaler kan sendes og mottas til og fra en datamaskin eller smarttelefon. Den kan også brukes til hybridapplikasjoner som streaming av liveopptredener eller online seminarer via mobile enheter som er koblet til et nettverk.

Yamaha STAGEPAS 100: Støtter hybrid bruk

6 timer med non-stop ytelse

STAGEPAS 100BTR mkII og STAGEPAS 100BTR er kompatible med litiumionbatterier med stor kapasitet som gir opptil 6 timers kontinuerlig drift, og leverer pålitelig ytelse i miljøer hvor det ikke er strømtilførsel tilgjengelig.

*STAGEPAS 100BTR mkII støtter USB PD (Power Delivery).
Multipoint Bluetooth® connectivity

The STAGEPAS 100 also comes equipped with multipoint supported Bluetooth functionality adding even more convenience to your set up and operation with wireless connection for music/ audio playback using smartphones and tablets.
The right direction

Easily control your coverage area with the carrying handle that doubles as a stand when the unit is placed on the floor. The attachment screws can be adjusted to change the angle of inclination to direct your sound exactly where it needs to go.
Mounting possibilities

The handle of the STAGEPAS 100 also features a 3/8" diameter screw hole that enable mounting on a microphone stand for more versatile sound dispersion options.
Når som helst, hvor som helst

The dedicated BAG-STP100 carrying bag features internal pockets for storing adapters, cables etc., as well as a padded shoulder strap for safe and easy transport to any location.
Kompatible Hybridapplikasjoner

STAGEPAS 100BTR mkII kan sende og motta lydsignaler til og fra en datamaskin eller smarttelefon via USB eller Bluetooth®.
