YCH7118 Chimes Ny

YCH7118 Chimes Ny

Larger 38.1mm diameter tubes (C52~F69 range)

Feature image

Rich fundamental tones, long sustain, and wide dynamic range provide the power needed to stand out in large ensembles.

The hanger unit (including handing wires) of YCH7018, YCH6018, YCHS7018, YCHS7006 can be retro-fitted by using new model’s service parts kit. Please contact your nearest Yamaha dealer shop for further details.


Head Cap

Feature image

The head cap design provides richer fundamental tone, pitch definitions, and longer sustain. It also brings a wider sweet spot so it is easier to produce optimum tone. The head caps are silver colored, contrasting nicely with the gold-colored tubes for easier visual reference.

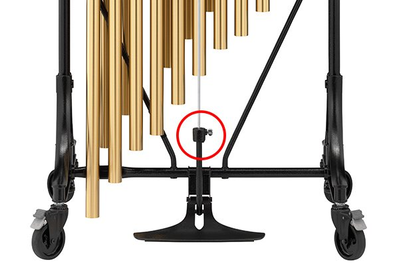

Damper Rod Clamp System (Patent applied for)

The damper rod clamp system has been redesigned for greater clamping strength and a more secure hold that prevents slippage when the damper pedal is pressed.

Feature image Feature image

Damper Function

Feature image

By aligning damper movement with the front-to-back motion of the chime tubes when struck, damping response has been notably improved. It is now easier to stop the extended sustain of the chime tubes at the most musically appropriate time.

Flexible Tube Arrangement

A full complement of damper holes is provided in the sharp/flat chime tube row, allowing any arrangement of chime tubes to be used. All available spaces can be used for a total of 21 tubes, if desired. Complete layout freedom is provided even when special-order chime tubes are used, since the position of the low C tube is not predetermined.

Note: The natural-note row of the YCH7118 does not provide sufficient height for longer chime tubes such as the YCHT7149A, YCHT7150A#, and YCHT7151B, so those tubes should be hung on the sharp/flat row or on a separate YCHS7106 stand.

If the short-length tubes such as YCHT7168E, 7169F, 7170F# or 7171G are hung on the sharp/flat row, the damper will not work properly since the lengths of those are not long enough to reach the damper unit. Please hang them on the natural row or use your hands to damp those extra tubes.

  • Feature image

Standard arrangement

  • Feature image

An example with D54 as the lowest note (high F# and G are special order Chime tubes)
