Veggfeste for Yamaha DSP lydplanker
Farger/Finishes

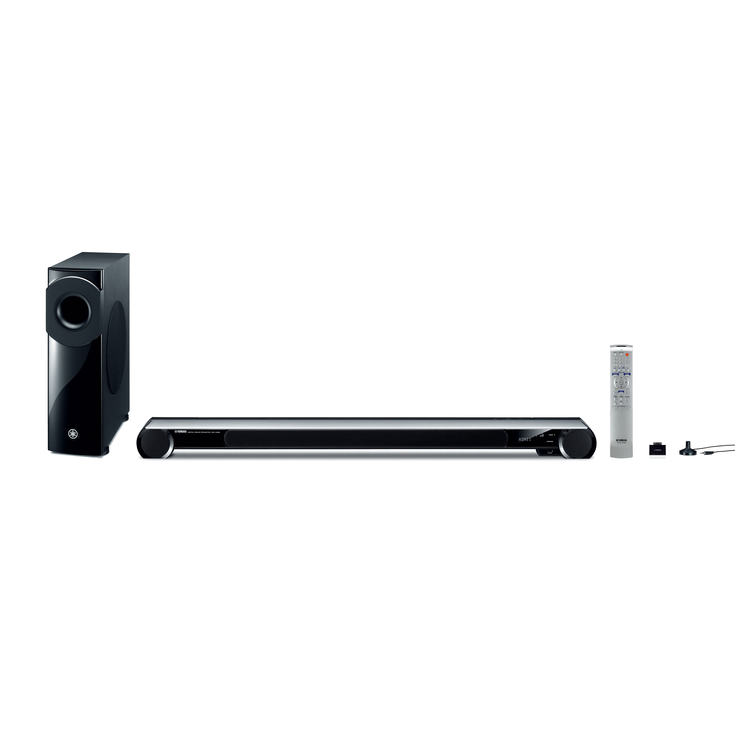

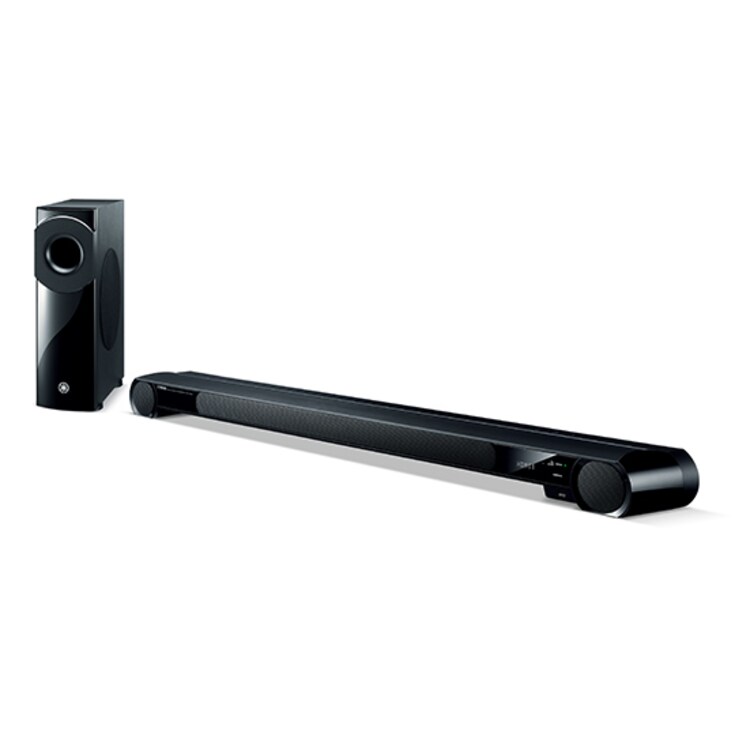

Slim, High Sound Quality Digital Sound Projector and Wireless Active Subwoofer deliver exceptionally high surround sound performance, with wireless music streaming and USB digital connection.
- The combination of a high sound quality design soundbar and specially tuned Wireless Active Subwoofer
- The truly high sound quality design soundbar with 22 array speakers and powerful Woofers
- Wireless Subwoofer with Advanced YST technology reproduce rich and powerful bass
- Using the YIT-W12TX you can also enjoy music with high sound quality wirelessly
- DSP teknologi leverer ekte Surround lyd
- IntelliBeam stiller automatisk inn systemet i ditt lytterom
- HDMI (4 in/1 ut) med 4K pass-through, 3D og Audio Return Channel,
- 40-station preset FM and RDS tuner
- Lavere og slankere for å passe framfor TVn
- Högblank finish i svart och vitt
- Digital USB anslutning för iPod/iPhone/iPad och USB enheter
- TV Remote Repeater
Total focus on achieving the finest sound.
Seeking the best possible sound quality, every element was rigorously selected and ideally balanced, into one single form. From this uncompromising process, a new YSP shape emerged. Ideal speaker unit size and layout. A chassis forged of aluminium for high rigidity. And complementing Yamaha's emphasis on sound, a black mirror finish. The result is a centre unit and subwoofer whose design is based on a firmly established plan.
— Ultimate sound, inevitable form —
This embodies our total philosophy for optimum sound quality.
Funksjoner

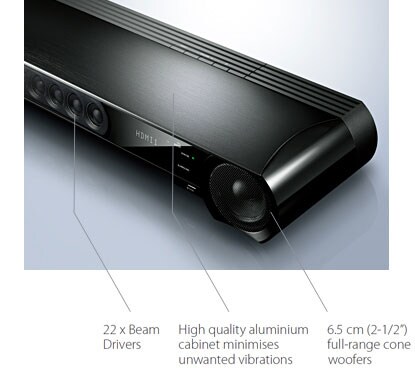

Truly High Sound Quality Design Soundbar Reproduces Realistic Sound
The soundbar uses 22 array speakers controlled by Yamaha's YSP technology to produce sharp beams for extremely high quality surround sound. Two powerful 6.5cm woofer units in the large cabinet also help to improve sound quality. The aluminium body dampens unwanted vibrations. The result is a sound field filled with presence for a superior surround sound feeling and outstanding imaging.

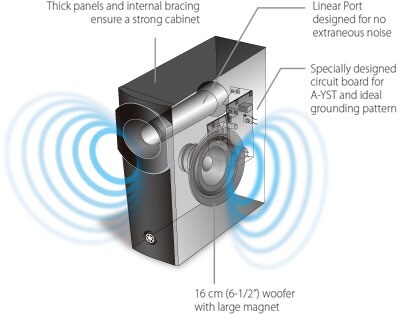

Wireless Subwoofer with Advanced YST Technology Reproduce Rich and Powerful Bass
The subwoofer has a large 16cm driver and uses Yamaha's exclusive Advanced YST technology to produce clear, powerful bass. The circuit board has an ideal grounding pattern that ensures stable current supply. The Linear Port improves sound dispersion and is designed to minimise unnecessary noise. Both music and movie sound effects are reproduced with an astounding sense of presence.
Wireless Streaming with High Sound Quality from iPod/iPhone/iPad or Mac/PC

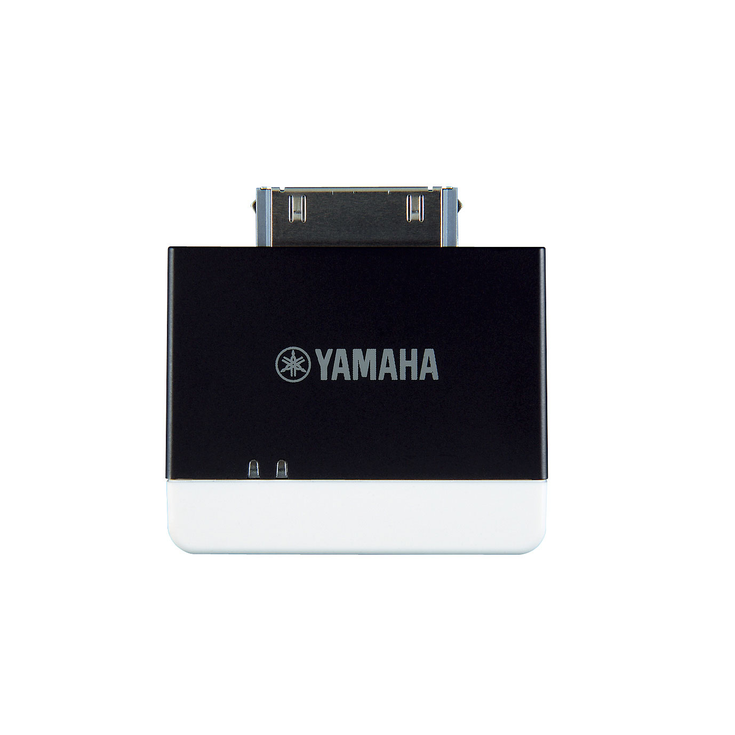

YIT-W12 är en trådlös sändare som du kan köpa till. Med den kan du trådlöst spela upp musik fån från din iPod / iPhone / iPad eller Mac / PC. Yamaha egenutvecklade AirWired teknik ger okomprimerad PCM överföring. Inga förluster ger bästa ljudkvalitet.

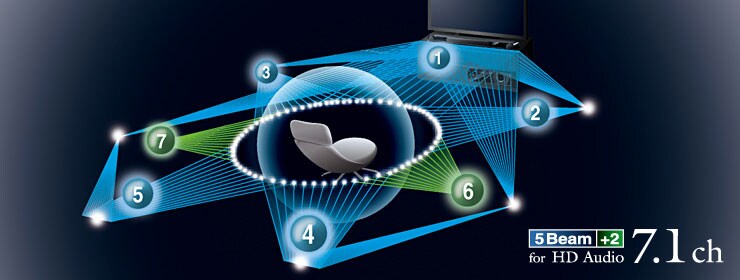

DSP teknologi leverer ekte Surround lyd
The YSP-4300 achieves true (not virtual) surround sound by producing beams of sound and using advanced processing to control their directions. You hear perfectly realized 7.1-channel surround sound with natural ambience and optimum imaging. Yamaha technology also provides the additional benefits of a wide "sweet-spot" listening area and the elimination of listening fatigue.

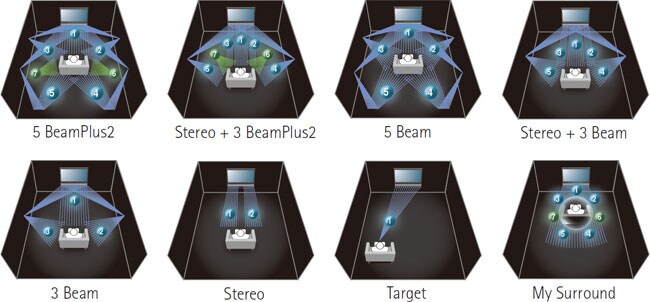

Versatile Listening Modes Which Can Be Chosen According to Contents
YSP-2200 oppnår ekte surroundlyd ved å reflektere lyden via veggene, slik at den når lytteren fra forskjellige vinkler. Hovedmodusen er 5 BeamPlus2 for 7-kanalskilder. I tillegg finnes en rekke andre lyttemoduser; 3 BeamPlus2 + Stereo, 5 Beam, Stereo + 3 Beam, 3 Beam, Stereo og My Surround.
HD ljudavkodning
YSP-2500 koder av HD-lydsignaler for å forsikre at du får beste mulige lyd fra bluray eller andre digitale kilder.
10 CINEMA DSP-programmer
Yamahas ultrasofistikerte CINEMA DSP-teknologi skaper realistiske lydbilder i ethvert rom. Velg mellom 10 programmer; tre film, tre musikk og fem underholdningsprogrammer.
IntelliBeam stiller automatisk inn lyden
Denne funksjonen, som er eksklusiv for Yamaha, sikrer optimal flerkanals lydgjengivelse. Ved å måle og analysere lyden ved hjelp av den medfølgende mikrofonen, vinkler IntelliBeam automatisk beamelementene og optimerer samtidig nivå og frekvensrespons for hvert enkelt beamelement. Dette gjør installasjonen både ekstremt enkel og akustisk perfekt.
HDMI (4 in/1 out) with 4K Pass-Through and 3D
Four HDMI inputs mean you can connect four high quality digital sources, each with just a single cable. Two additional HDMI benefits are 4K Passthrough, which allows the transmission of nextgeneration super high resolution images, and 3D, for the transmission of 3D video.
*This model doesn't support HDCP2.2. HDCP2.2 compatible equipments are needed to see 4K contents which are encypted with HDCP2.2.
MHL (Mobile High-Definition Link)
Når musikk kodes til digitalt komprimerte filer som MP3, går det ut over frekvensresponsen. Music Enhancer gjenoppretter det som gikk tapt i komprimeringen, slik at musikken låter slik den er ment å låte.
Andre nevnbare funksjoner
UniVolume behåller samma ljudstyrka
• 40-station preset FM and RDS tuner

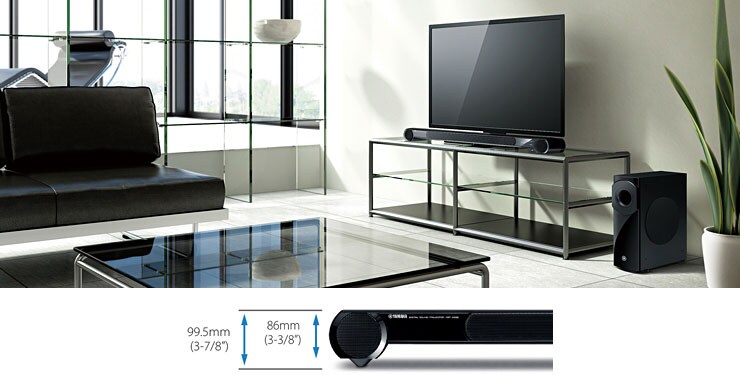

Lavere og slankere for å passe framfor TVn
Only 86mm high, the YSP-4300 can easily be placed in front of your TV without blocking the screen. The height can be adjusted in two levels by adding the spacers. It is also wall mountable (brackets optionally available).
Hodetelefonuttak med surroundlyd
Chassiet er gjort i aluminium, som er stivt og ikke-magnetisk. Platen på toppen er tykk nok til å gi enheten en tydelig, klar og fyldig lyd uten påvirkning av vibrasjoner. Dessuten er den interne strukturen eksakt beregnet og layouten er optimert for å gi best mulig spredning av lyden. Resultatet er meget eksakt - noe som må oppleves.
Trådlös aktiv subwoofer ger flexibel placering
The subwoofer eliminates the need to connect cables, so setup and placement are faster and easier. The fact that it can be used in either a horizontal or a vertical position provides additional flexibility. This is a convenient subwoofer that delivers powerful, high quality bass sound.
USB-digital tilkobling for iPod, iPhone og iPad på frontpanelet
A USB terminal on the front panel makes it quick and easy to plug in your iPod, iPhone or iPad to enjoy stored music. The digital connection ensures that there is no data loss, maintaining optimum sound quality. When connected, the iPod, iPhone or iPad will charge even when the YSP-4300 is in standby mode.
USB-port og minijackinngang
USB Port for Direct Access to MP3 or WMA Tracks on USB Devices USB Port for Direct Access to MP3 or WMA Tracks on USB Devices.
HDMI CEC-kompatibel
Når YHT-S401 koples til en CEC-kompatibel TV, som f.eks. en TV med Panasonic VIERA Link, vil YHT-S401 slå seg av og på samtidig som TV-en, og TV-ens fjernkontroll kan brukes til å kontrollere volumet. CEC tilbyr også avansert kompatibilitet med andre komponenter.
TV Remote Repeater
YAS-201 kan ""lära sig"" TV fjärrkontrollen, så du kan använda TV: ns fjärrkontroll för att sätta på och stänga av YAS-201 eller justera volymen.
Andre nevnbare funksjoner
• Memory function for recording up to three of your favourite settings
• ECO Mode for energy conservation
Enkel og tydlig On Screen Menu på 10 ulike språk.
• Custom installation functions : Extended IR, RS-232C (RJ 12) , IR in and IR pass through out
• Optional accessory: SPM-K20 Wall Mount Bracket for wall mounting
Accessories
YSP Technology
Digital Sound Projectors use Yamaha’s proprietary technology to bounce sound focused into beams off walls, producing true multi-channel surround sound.
The primary advantage of the YSP Series is that simply placing a unit in the front of a room provides true surround sound, which you hear from the front and rear and also the left and right. Its key technologies are the production of sound beams via the control of multiple built-in speakers, and IntelliBeam, which automatically sets the optimum sound field for the size and shape of the room. Thanks to these two technologies, the YSP Series can reproduce 7.1-channel surround sound that is natural with an expansive feeling, qualities that cannot be achieved by virtual surround systems.

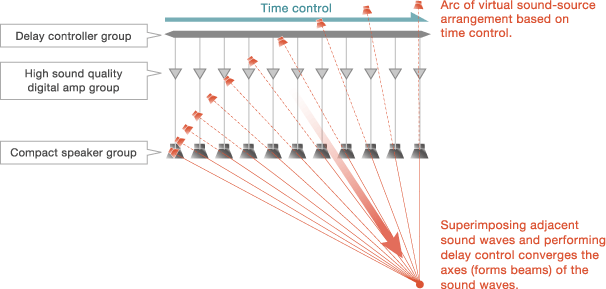

Beam control technology creates sound beams.
The front surface of a YSP unit features a number of compact beam speakers* installed in orderly rows. Control of each of these speakers on a time axis by individual amps creates five sound beams. Bouncing these sound beams off walls creates a surround environment.
* YSP-3300: 16; YSP-4300: 22
Superimposing sound waves from the compact speakers installed in a row and adjusting their direction by delay control causes the axes of the sound waves to converge in a specified direction.
How the sound beams are created.
- Sound produced from the speakers is transmitted radially from the sound source, like an expanding ripple (Fig. 1).
- The sound waves from two speakers are superimposed, creating interference (Fig. 2).
- If the number of speakers in adjoining locations is increased, the sound waves are superimposed even more, so the sound is transmitted as a single strong wave. This is a sound beam (Fig. 3).
- By using a processor (dedicated Yamaha LSI) to control the times when each speaker produces sound, the direction of the sound beams can be controlled (Fig. 4).
- Controlling the directions of the beams to bounce them off the walls enables the sound to come from five directions: front left and right, rear left and right, and centre. Models from the YSP-4300/3300 create two phantom sound sources in addition to the five beams, to provide 7.1-channel surround sound.
1. Sound from the speakers is transmitted radially.
2. Ripples of sound from two adjacent speakers are superimposed, creating interference.
3. The ripples of sound are further superimposed, creating a single strong wave — a sound beam.
4. The timing of the sounds from each speaker are delayed, controlling the direction of the beams.
IntelliBeam automatically sets the listening environment best suited to the room.
When the microphone is placed at the listening position, it searches for the places suitable for reflecting the beams while it checks the size and shape of the room and the quality of the wall material, in order to automatically adjust the beam angle, the volume and the sound quality. This makes it easy to achieve the best surround sound environment.
Presence created by true surround.
YSP models achieve real multi-channel surround by, not virtually but actually, bouncing sound beams off walls. This provides three major benefits.
1. Natural ambience
YSP models naturally expand the sound radiated onto the walls, producing surround sound without the unnatural feeling of sound linkages between the channels.
2. Wide listening area
YSP models provide ideal family listening, because the listening area is wider than with conventional virtual surround sound.
3. Less individual differences and listening fatigue.
Ordinary virtual surround systems often sound different to different people because the surround sound is created artificially. This causes some people to become tired of listening after a certain amount of time. With YSP models, sound bounced off walls actually comes from behind the listeners, which means there is little difference in its effect between individuals, and people are unlikely to experience listening fatigue, even after long periods.
* Spesifikasjoner kan endres uten varsel. Farger og utførelser kan avvike fra de som vises på de faktiske produktene.
